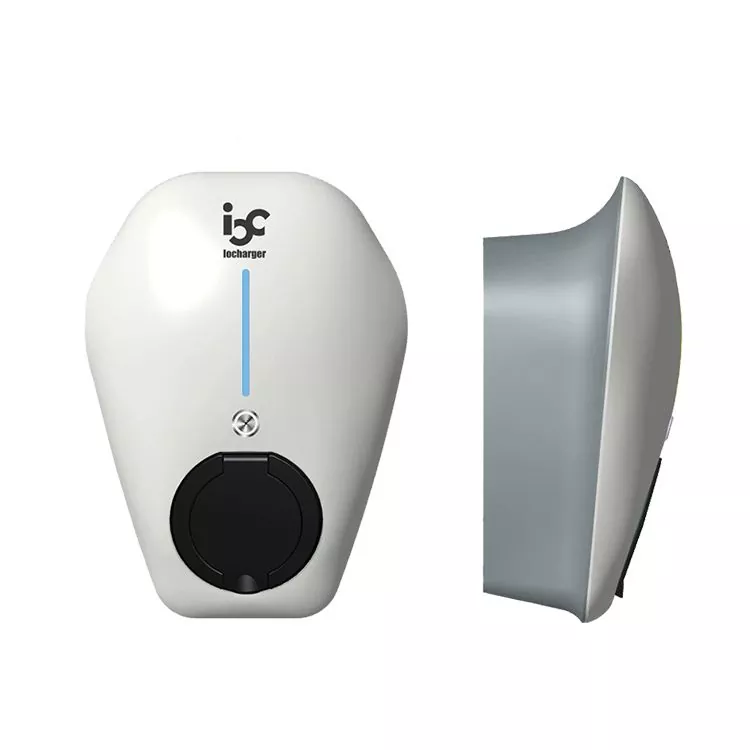

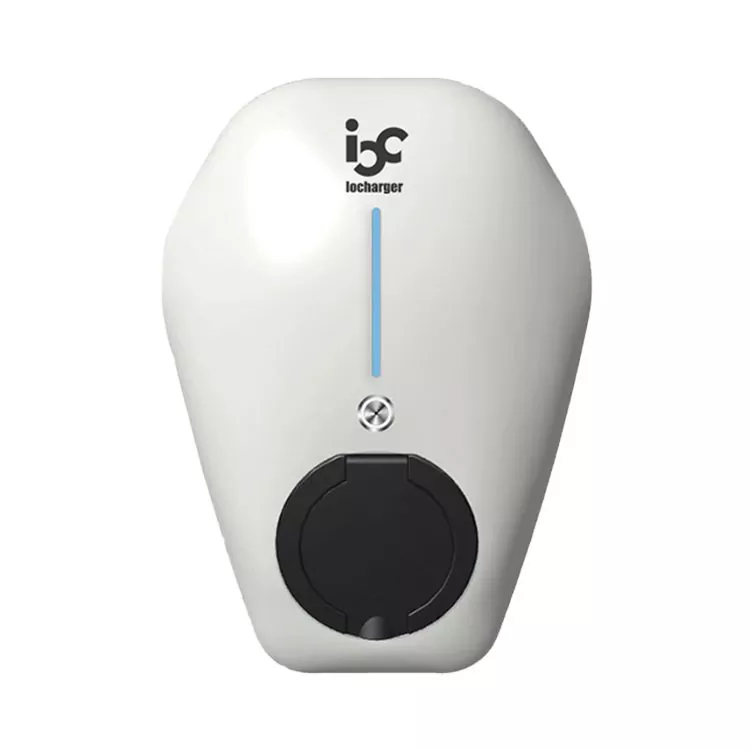

7k-11KW OCPP Mini Smart EV Charger
EXV, known as Aecoauto too, operates as a supplier in China, providing a variety of cars. Some car chargers are also available, among which is the 7k-11KW OCPP Mini Smart EV Charger. 7k-11KW OCPP Mini Smart EV Charger is ideal for domestic and commercial use due to its intelligence, safety, durability, and convenience.
Send Inquiry
Product Description
As EXV, also referred to as Aecoauto, we serve as suppliers in China, offering a variety of vehicles. Some car chargers are also available, including the 7k-11KW OCPP Mini Smart EV Charger.

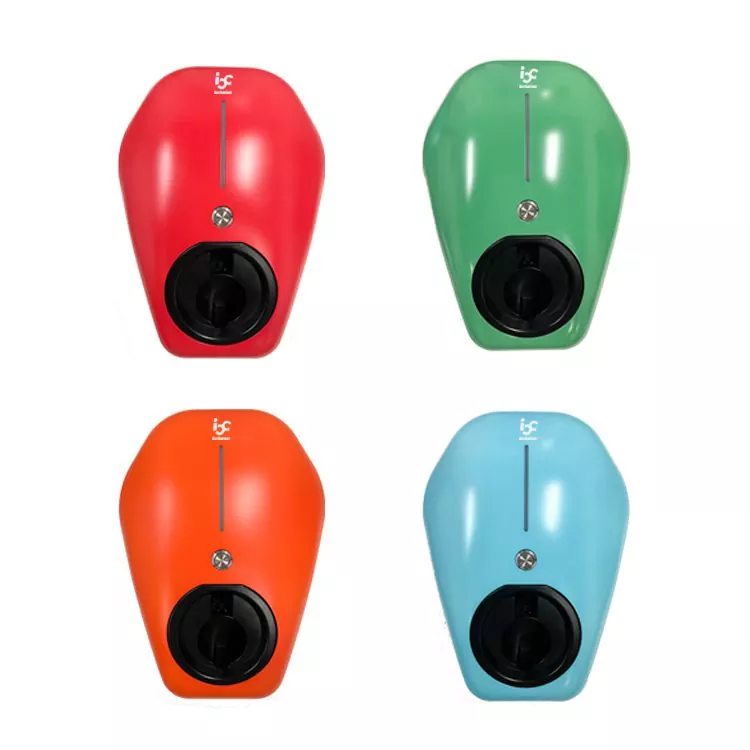

Multiple Colors 7KW 11kW
OCPP 1.6J & 2.0.1 WiFi &
Bluetooth Mini Smart EV
Charger
The smallest and most stylish EV charger for home
charging, dynamic power distribution to make sure of a
safe and efective network for EV chargers, solar, grid
system and energy storage systems.
·Input Rating: 1-phase 230V±20%;3-phase 400V±20%
·Output Rating: 1-phase 7kW 32A;3-phase 11kW 16A
·Internal RCD: AC 30mA & DC 6mA IEC62955 &
IEC61008 certified
·Network Interface: Ethernet/WiFi/ Bluetooth smart
internet connection
· OCPP: Full OCPP 1.6J/ OCPP 2.0.1 support
·ISO15118 Plug&Charge: Upgradable
·Ingress Protection:IP55
·Shipping Dimensions: 398 x 285 x 176 mm; 398x 285 x
226mm
Charging Interface:SAE J1772 & Type-2 cable/Type-2
socket
·Mounting Type: Wall or Floor( pedestal supplied
separately)

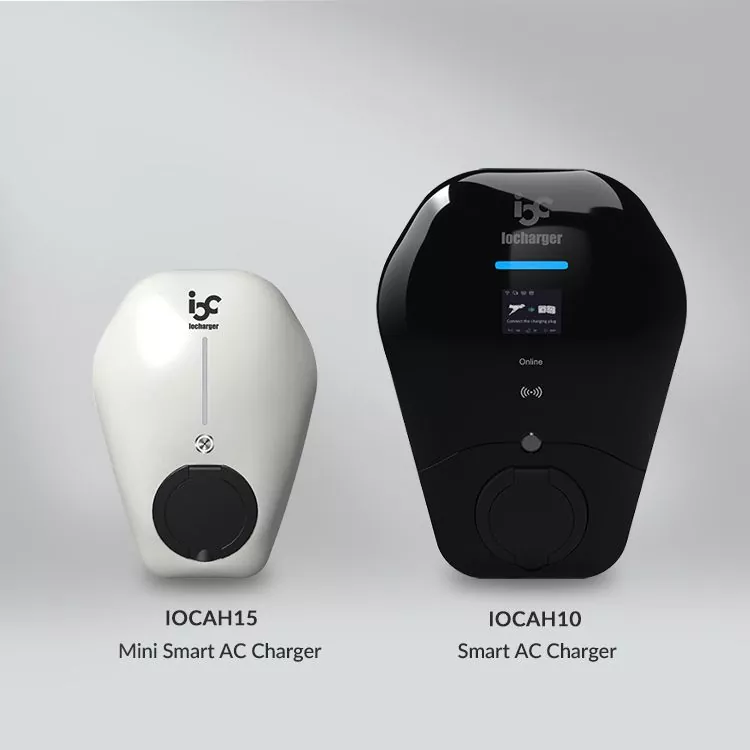

IOCAH15 is a perfect choice for home charging with a compact design yet powerful and smart. Multiple functions are available on IOC Lite App to manage charging schedules, load balancing and energy sources from solar & battery.
Main features:
· Compatible with all EVs and power grids
·Single phase 32A 7kW & Three phase 16A 11kW
available
·Streamlined design, simple and elegant appearance
·Ethernet, Wi-Fi, Bluetooth connection
·Flexible output current/power configuration
·Customizable breathing light according to
preferences
· Smart dynamic load balancing support
·User authentication via Mobile App

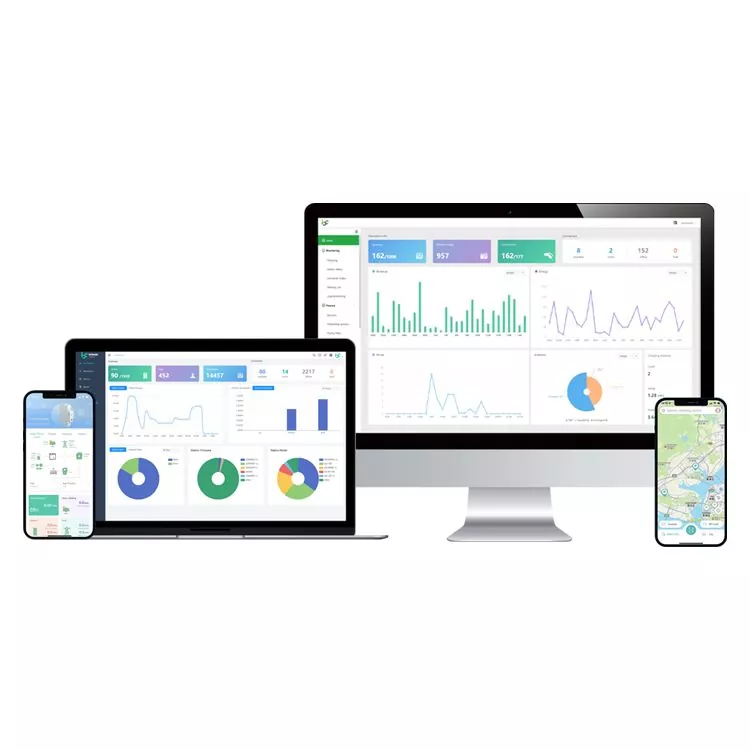

·Multifunctional charger commissioning web portal
·Remote control and monitoring
·AC 30mA & DC 6mA current leakage protection
IEC62955 & IEC61008 certified

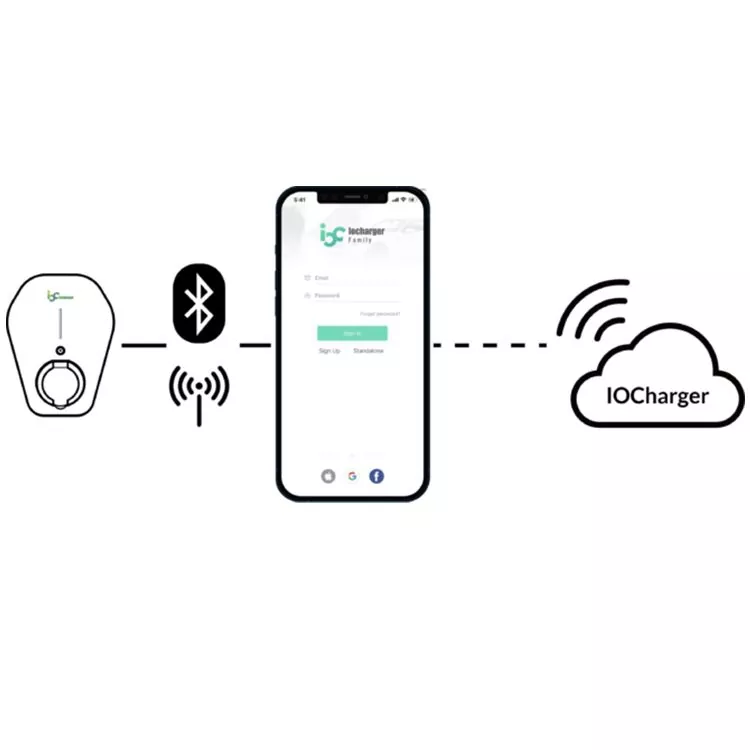

Bluetooth Technology
IOCAH15 has integrated our latest Bluetooth technology
to maximize the user experience in challenging
environments like underground parking, in apartment
buildings and offices, our mobile App can work
seamlessly with or without network connection.

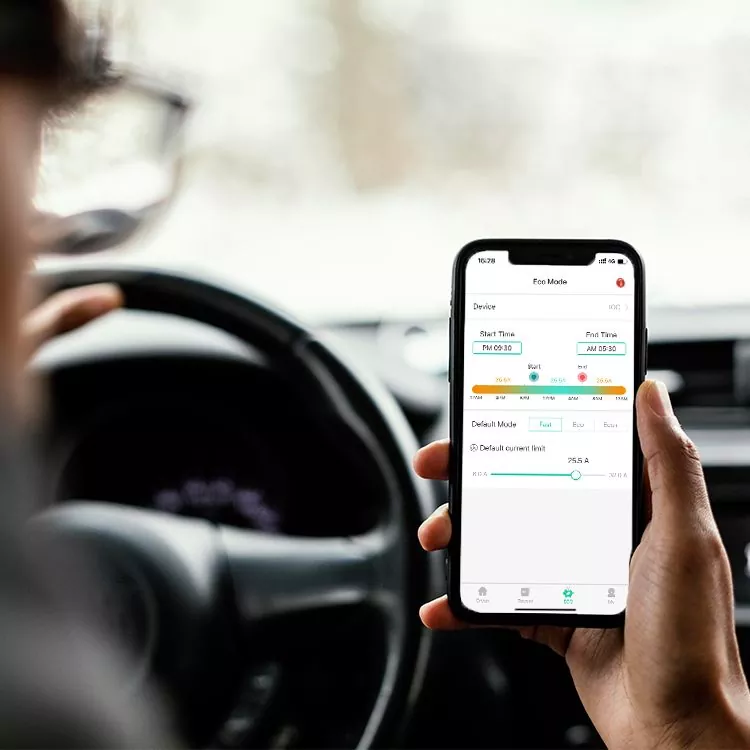

Users can start, stop and manage the charger via an
Internet/Bluetooth connection and the data will be
synchronized between the phone and back-end once
the phone has coverage.
Dynamic Load Balancing
The CT clamp can be connected to the IOCAH15 mini
smart AC charger directly for current monitoring of
other home appliances, without extra device.The
charging current is automatically adjusted according
to real-time current values. It can prevent our home
from overloading with installation of single or multiple
chargers,either online or offline.
OCPP 1.6J & 2.0.1
As a member of OCA(OCPP) & OCPI, our EV chargers are
always integrated with the latest OCPP technology
including OCPP 1.6J and OCPP 2.0.1.With more than 8
years' OCPP experience, our chargers are certified by
major OCPP platforms and CPOs.

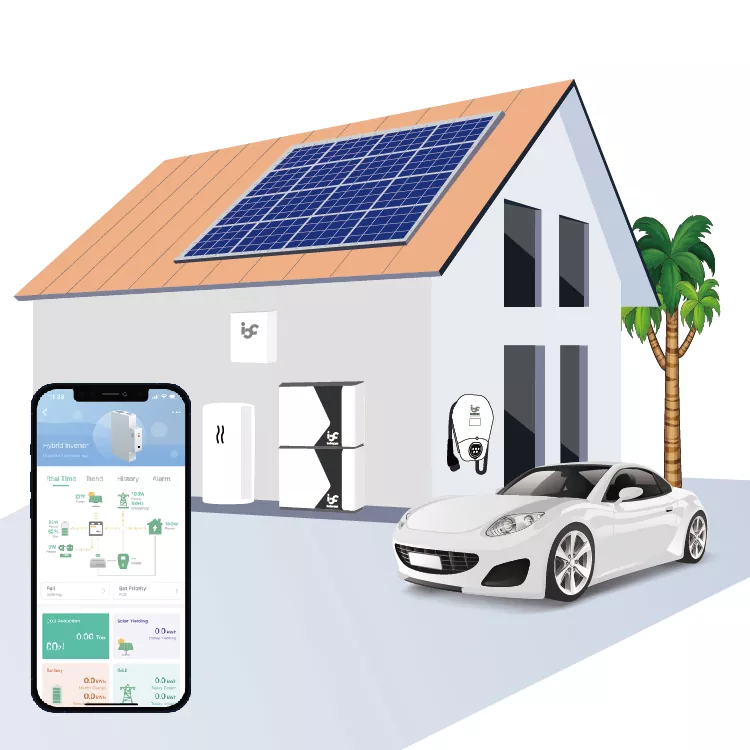

Optimize Energy Usage
Fully compatible with solar installation and battery
storage system.Connect IOCAHI5 to IOC Lite Mobile App
to experience Fast, ECO, ECO+ modes to minimize the
charging cost, monitor and utilize different energy
sources from grid,solar and home batteries.
