OCPP 60-120KW CCS-2 CHAdeMO 22KW Type-2 AC and DC Combo
We are EXV, also recognized as Aecoauto, and we supply a variety of vehicles in China. Some car chargers are also available, including the OCPP 60-120kW CCS-2 CHAdeMO 22kW Type-2 AC and DC Combo. OCPP 60-120kW CCS-2 CHAdeMO 22kW Type-2 AC and DC Combo is a combined charging post that combines alternating current (AC) and direct current (DC) charging functions, supports the OCPP protocol, and is compatible with a variety of charging standards such as CCS-2, CHAdeMO, and Type-2.
Send Inquiry
Product Description
EXV, also known as Aecoauto, functions as a supplier in China, providing a variety of cars. Some car chargers are also available, with the OCPP 60-120kW CCS-2 CHAdeMO 22kW Type-2 AC and DC Combo among them.
OCPP 1.6J OCPP 2.0.1 60KW 120KW
CCS-2+CHAdeMO + 22kW Type-
2 AC & DC Combo

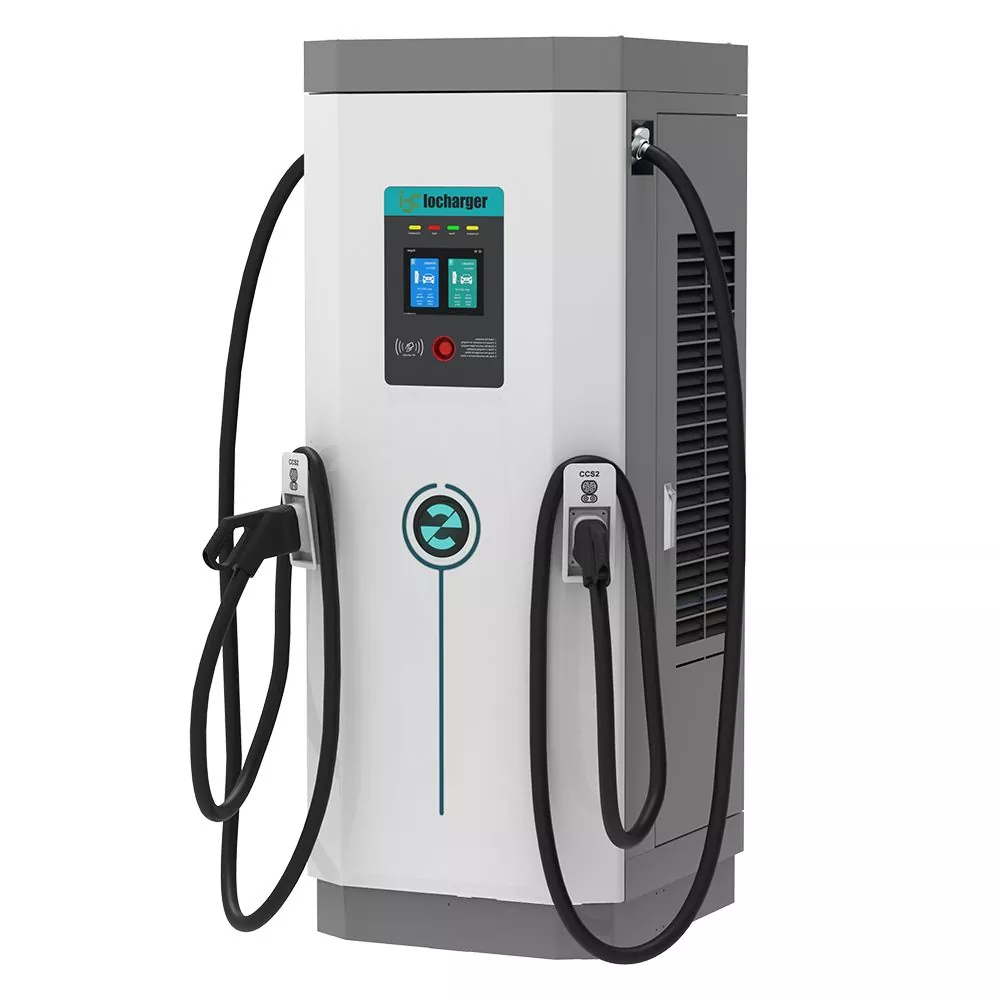

IOCHY3 has an output power up to 120kW with DC CCS-2+
CHAdeMO + 22kW AC Type-2 +3.6kW Schuko outputs, which is
widely used for electric bus charging. Friendly user interface with
4G/Wi-Fi/ Ethernet communication and RFID card reader, TUV & CE
certified.
·AC Voltage:3-phase 400V±15% AC
·Max DC output power:DC 60kW+AC 22kW/DC 120kW+AC 22kW
·Output DC voltage range:150V-1000V DC
·Display:8" TFT Touch Screen LCD
·Network Interface:Ethernet/WiFi/ 4G smart internet connection
·OCPP:Full OCPP 1.6J/OCPP 2.0.1 support
·ISO15118 Plug&Charge:Upgradable
·Ingress Protection:IP54
·Shipping Dimensions: 2017 x 1100 x 1000 mm
·Charging Interface:1 CCS+1 CHAdeMO+1 AC Type-2 cable+1
SCHUKO
·Mounting Type:Floor
As the popularization of electric vehicles, people are more likely to
drive their EVs on the road for cost saving and environment friendly
purposes. Diversified charging demands become inevitably. Some
people require fastest charging speed for time saving, and some
people want to enjoy a cup of coffee while charging. An all-in-one
charging station is now required. HY3 is designed especially for
such demands.
Main features:
·Supporting CCS, CHAdeMO and Type 2 AC charging
·22kW or 43 kW AC charging connector
·ISO 15118 Plug & Charge
·Multi languages supported
·Daylight readable touch screen display
·RFID authorization
·Pin-Code (OTP)
·Robust all weather stainless steel enclosure
·Quick & easy installation
Latest OCPP compliant
With its fully compliance of OCPP 1.6J and OCPP 2.0 profiles, HY3 is
easily to connect to any OCPP based backend.
Various means of payment
HY03 supports multiple wireless payment platforms to meet various
payment requirements.Physical credit card payment module is
also scalable on HY3.
Harmonious commercial EV charging
Dynamic load management is supported on HY03 as
well. If the station is using hybrid grid including solar
energy storage system, HY03 can work with it
harmoniously with iocharger's latest technology.
