32-40A Certified Home EV Charger
EXV, also referred to as Aecoauto, operates as a China-based supplier, providing a variety of cars. Some car chargers are also available, with the 32-40A Certified Home EV Charger among them. 32-40A Certified Home EV Charger is a charging solution designed for home use and features a high current.
Send Inquiry
Product Description
As EXV, known as Aecoauto, we are China-based suppliers offering a variety of vehicles. Some car chargers are also available, including the 32-40A Certified Home EV Charger.

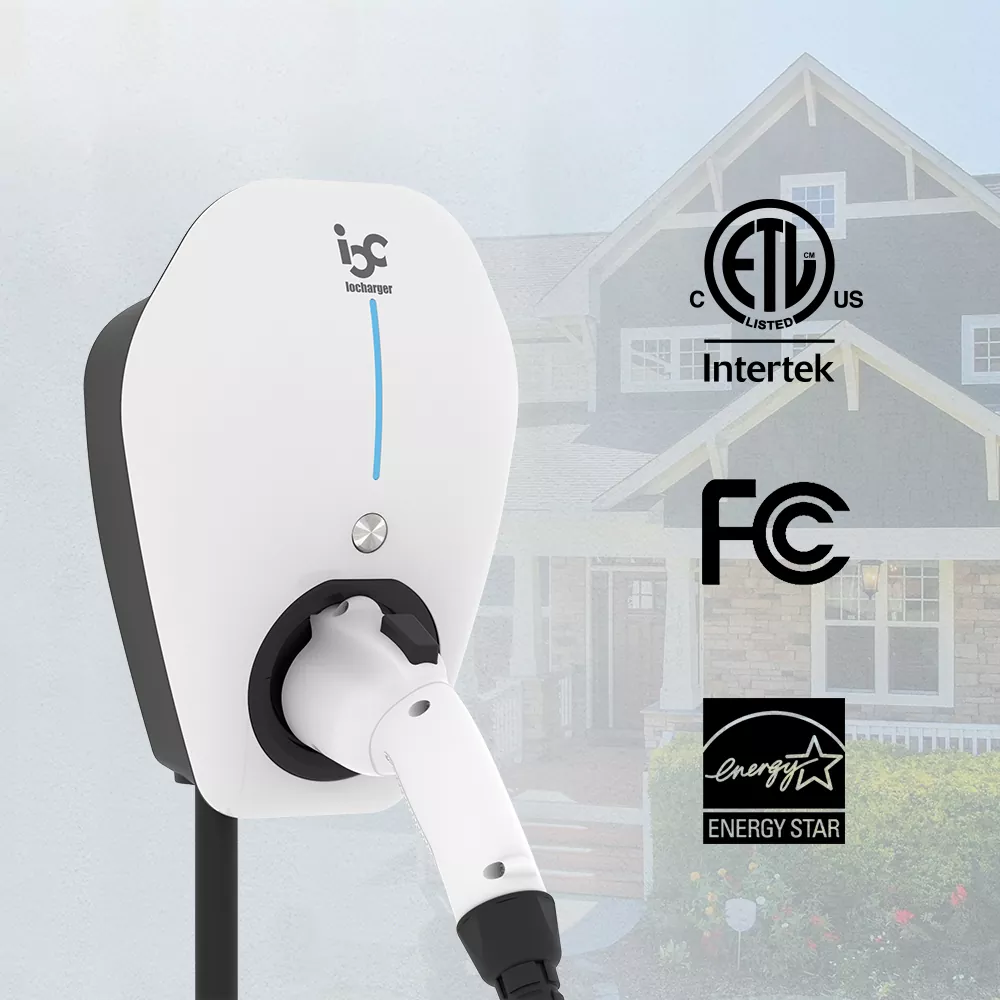

32A 40A UL ETL FCC certified
Home EV charger for US
market

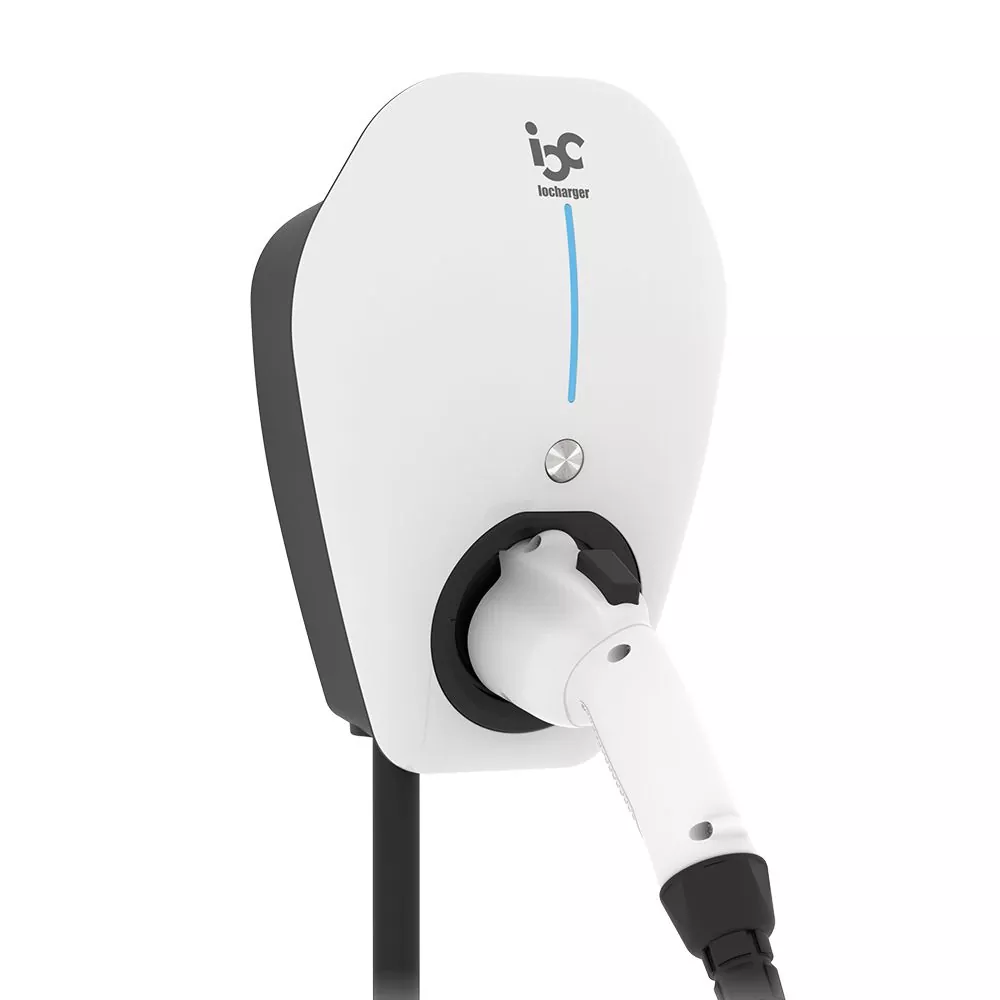

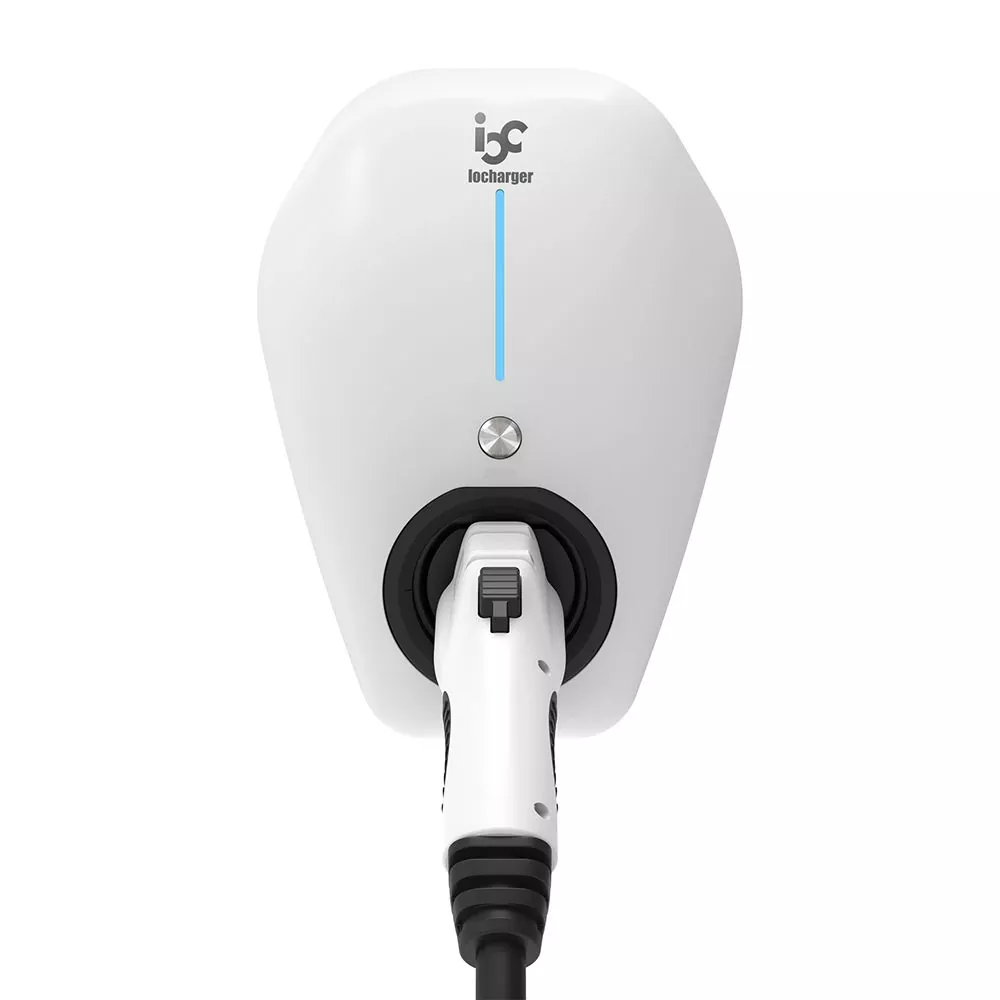

IOCAH29 is a smart home EV charging station specially
designed for Norh American. It is compatible with all
EVs on the market today.
·Input Rating:Nominal 200-240 V AC single-phase
· Output Rating: 7kW 32A; 9.6kW 40A
·Internal RCD:20mA CCID
·Network Interface:Ethernet/WLAN/Bluetooth smart
internet connection
·OCPP:Full OCPP 1.6J/OCPP 2.0.1 support
·ISO15118 Plug&Charge:Upgradable
·Ingress Protection:Type 3R
·Shipping Dimensions:395x 285 x 226 mm
·Charging Interface: SAE J1772 Type-1
·Mounting Type:Wall or Floor(pedestal supplied
separately)
Main features:
·Up to 32A, 40A versions available
·OCPP 1.6J, OCPP 2.0.1 Fully supported
·Dynamic load balancing connect CT clamps directly
·Schedule your charging times when rates are lower
·Charge your EV with power from the grid,solar,
batteryor all source
·Ethernet, WLAN, 4G, Bluetooth available
·User Authentication via RFID,ISO15118 Plug&Charge or
mobile App
·Tuya mobile app integration for smart home device
control
·User friendly web portal for charger configuration,
maintenance and fault check

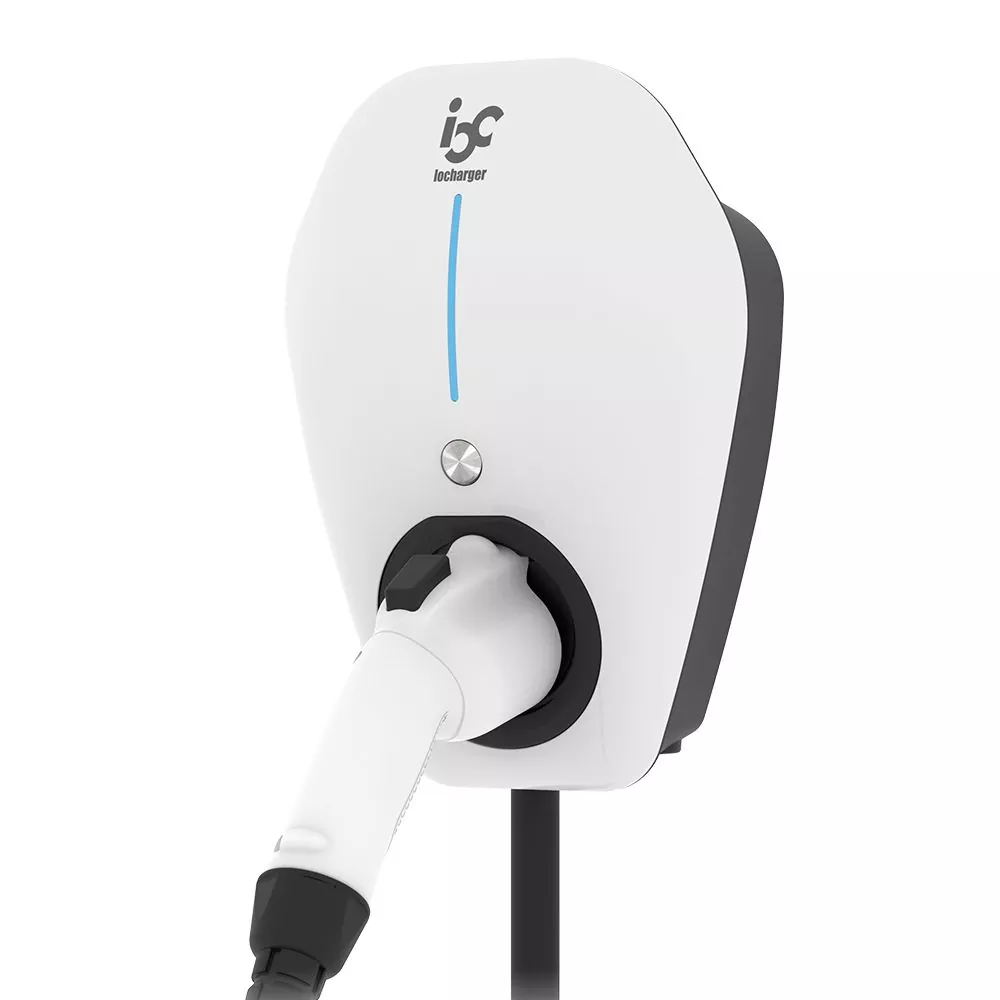

Unique design & Easy installation
Mini exterior design is IOCAH29 charger's marked
feature. With it's 4KG weight and mini dimension, it is
easy for placement and installation.Multiple colors of
upper casing is also optional for customer's preference.
It is safe for indoor and outdoor use with Type 3R rated
for water and dust resistance.
Your electrician can easily install the IOCAH29,with an
available Hardwired, NEMA 6-50P or NEMA 14-50 plug
installation.
*Different models use different NEMA plug.
Smart charging
IOCAH29 is mini yet smart charging with iocharger's
advanced technology.OCPP 1.6J and OCPP 2.0.1
compatible. Not only support Ethernet, WiFi, 4G network
connection, but also support Bluetooth feature to
transfer the data when other network is not available.
Tuya smart home
IOCAH29 has integrated with Tuya mobile app to
control and monitor your home EV charger.With this
feature you can start/stop charging, schedule charging
plan on Tuya mobile app. Your charger and all other
home smart devices can be controlled by Tuya mobile
app, no need to install additional apps.

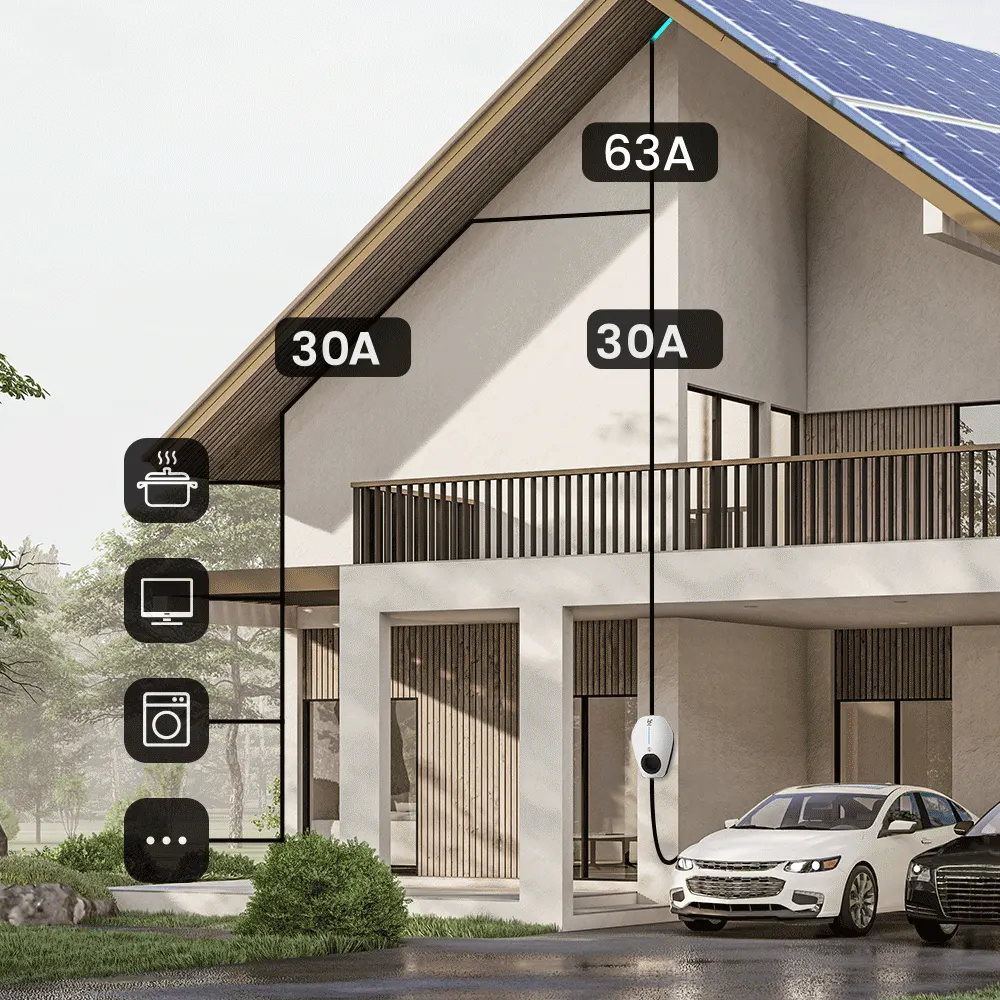

Dynamic load balancing
The CT clamp can be connected to the IOCAH29 mini
smart EV charger directly for current monitoring of other
home appliances, without extra device.The charging
current is automatically adjusted according to real-
time current values. It can prevent your home from
overloading with installation of single or multiple
chargers,either online or offline.
Outstanding Solar & Energy management
If you have solar system, and also energy storage
system at your home, IOCAH29 charger can work with
the whole system seamlessly.You can easily monitor
the complete system and control its charging through
IOC Lite mobile App.
3 charging modes for solar energy to optimize your
energy use
·Full,always charging at the full rate
·Solar Assist, will use both Solar source & Grid source,
with solar source as first priority, and make sure keep
charging until full EV charging
Solar only, will use solar source only, if not enough for
charging, charger will be switched to suspended
mode, and back to charging if solar available for
charging again
