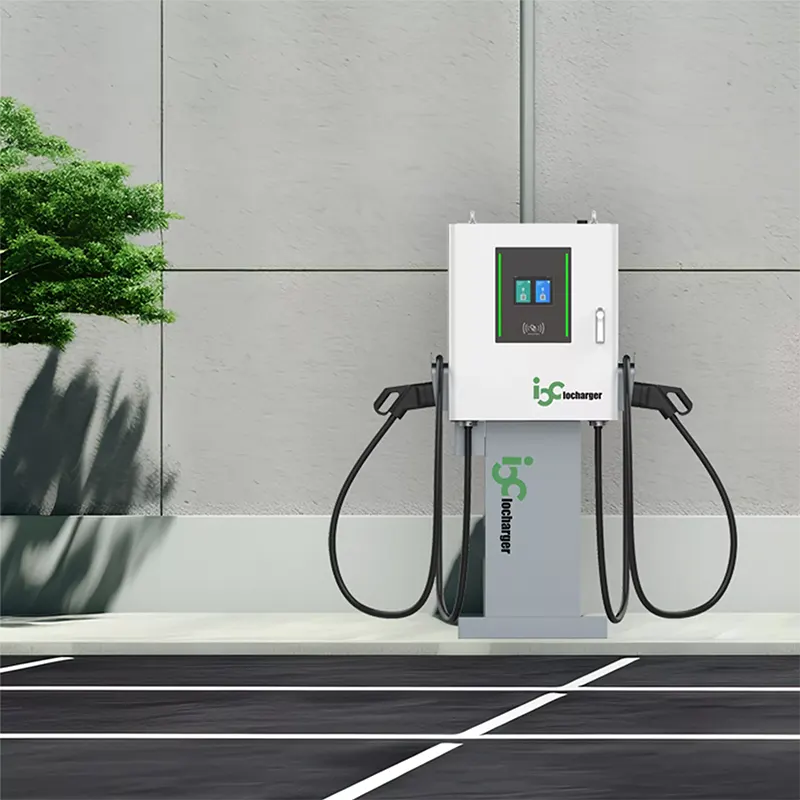

Plug and Charge OCPP 30-60KW DC Wallbox
We are EXV, also recognized as Aecoauto, and we supply a variety of vehicles in China. Some car chargers are also available, including the renowned Plug and Charge OCPP 30-60KW DC Wallbox. With convenient plug-and-charge function, open communication protocols, fast charging power, and a design suitable for wall-mounting, Plug and Charge OCPP 30-60KW DC Wallbox can provide an efficient and convenient charging experience for electric vehicles.
Send Inquiry
Product Description
EXV, also identified as Aecoauto, operates as a supplier in China, providing a variety of cars. Some car chargers are also available, with the renowned Plug and Charge OCPP 30-60KW DC Wallbox as one of our offerings.
ISO15118 Plug&Charge V2G Level 3
OCPP 1.6J OCPP 2.0.1 30KW 60KW
DC Wallbox
IOCHY2 is a compact DC charging station can be fixed on wall or
floor-mounted as an option,easy to use for everyone.
·Input Rating:3-phase 400V±15% AC
·Max DC output power:30kW/ 60kW
·Output DC voltage range:150V-1000V DC
·Display:8" TFT Touch Screen LCD
·Network Interface:Ethernet/WiFi/ 4G smart internet connection
·OCPP: OCPP 1.6J/ OCPP 2.0.1 full profiles support
·ISO15118 Plug&Charge: Upgradable
·Ingress Protection: IP54
·Charging Interface:1 CCS/1 CHAdeMo/2 CCS/2 CHAdeMO/1
CCS+1 CHAdeMO
·Mounting Type:Wall or Floor(pedestal supplied separately)
·Dimension:355x690x770mm
Main features:
·Charging speed upto 60kW
·CCS1/CCS 2/ChadeMO/ GB-T charging connector
·ISO 15118 Plug & Charge
·Support two charging connectors charging simultaneously
·95% power efficiency for cost-saving operation
·Embedded RFID card reader for user authentication
·8 inch LCD touch screen & user-friendly interface easy to
operate
·Wired/wireless network capability for back office connection
·Pin-Code(OTP)
·Full OCPP 1.6J & OCPP 2.0.1 commands support
Fast charging speed and high efficiency
IOCHY2 allows maximum 60kW charge power which ensure long
endurance mileage in short-time charging. Charging efficiency
over 95% and low standby consumption make cost-saving
operations possible.
Applicable to a wide variety of use cases
With its ultra-compact design, it is safe and reliable for residential,
workplace offices, public commercial assets like shopping centers,
hotels,parking structures,fleets,etc.
Easy to use
IOCHY2 enables safe authentication and secure payment through
RFID,mobile Apps. The multi-language supported 8 inch touch
screen makes the charging operation easy & understandable for
all users.
Smart charging supported
Smart charging via latest OCPP. Dynamic load management
feature makes it ready for integration with advanced smart
building energy building or when power source is limited.
